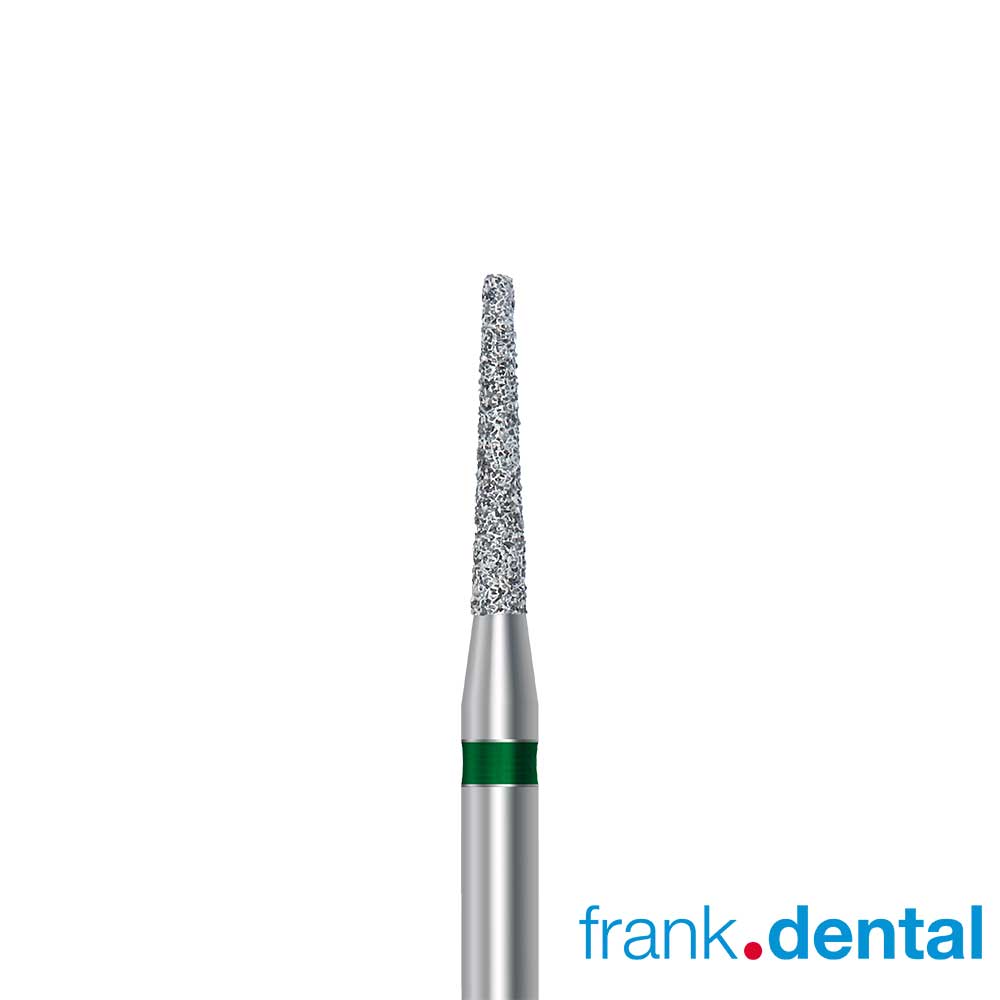

Frank Dental Tapered Shoulder Crown Preparation Bur 1.2mm at the widest part of the bur (Where the diamond meets the shank) 0.65mm at the narrowest part of the bur (Tip/Head).

Why Use a Tapered Shoulder Flat Top Square Edge Diamond Bur for Crown Preparations?

Understanding the Advantages of the Frank Dental D.847 Tapered Shoulder Crown Preparation Bur Range

When preparing a tooth for a crown restoration, one of the most important decisions a clinician makes is selecting the correct finish line design. The finish line determines how the restoration fits, how much restorative material can be supported at the margin, and ultimately how long the crown will last.

For decades, the tapered shoulder preparation has remained one of the most widely used crown preparation techniques for porcelain fused to metal (PFM) crowns and many ceramic restorations. The ability to create a precise 90-degree shoulder margin makes the tapered shoulder bur an essential instrument in restorative and prosthetic dentistry.

The Frank Dental D.847 range of tapered shoulder diamond burs has been specifically designed to produce accurate shoulder margins with excellent control, visibility and cutting efficiency. Manufactured in Germany using premium natural diamond technology, the D.847 burs enable dentists to create clean, well-defined finish lines that support long-lasting crown restorations.

Whether you are preparing teeth for a porcelain fused to metal crown, an anterior ceramic crown, a bridge retainer or a full-coverage restoration, understanding why a tapered shoulder bur is used can significantly improve preparation quality and restorative outcomes.

---

What Is a Tapered Shoulder Diamond Bur?

The Frank Dental D.847 is classified as a tapered shoulder diamond bur.

The bur features:

• A tapered body
• Parallel cutting surfaces
• A flat top
• A square edge
• Defined shoulder-forming geometry

Unlike a chamfer bur that creates a rounded finish line, the D.847 produces a flat shoulder with an approximately 90-degree cavosurface angle.

This shoulder preparation provides a stable horizontal platform for restorative materials that require adequate thickness at the crown margin.

The design has remained popular because it creates one of the strongest and most easily identifiable crown margins available.

---

What Is a 90-Degree Shoulder Margin?

A shoulder margin is a finish line where the preparation meets the uncut tooth surface at approximately 90 degrees.

This produces a flat ledge around the circumference of the preparation.

The margin consists of:

• A flat horizontal seat
• A defined external angle
• A clear finish line

This differs significantly from a chamfer preparation where the margin is curved and rounded.

The 90-degree shoulder created by the Frank Dental D.847 provides space for restorative materials that require increased thickness for strength and aesthetics.

---

Why Is a 90-Degree Shoulder Important?

The primary purpose of a shoulder preparation is to provide adequate restorative material thickness.

If insufficient space is created during crown preparation, several problems can occur:

• Weak porcelain margins
• Increased risk of chipping
• Crown fracture
• Over-contoured restorations
• Poor aesthetics
• Compromised emergence profile

The shoulder margin provides the necessary bulk of material at the edge of the crown where restorations are often most vulnerable to failure.

This is one reason why shoulder preparations continue to be taught extensively in prosthodontic training programmes worldwide.

---

Why Are Shoulder Margins Commonly Used for PFM Crowns?

One of the most common applications of the Frank Dental D.847 range is the preparation of porcelain fused to metal crowns.

A PFM crown consists of three layers:

1. Metal coping
2. Opaque layer
3. Porcelain veneer

Each layer occupies space.

If inadequate tooth reduction is performed, the technician has only two options:

• Create an over-contoured crown
• Produce thin porcelain

Neither solution is ideal.

Thin porcelain can fracture, while over-contoured crowns may compromise gingival health and aesthetics.

The shoulder preparation created by the Frank Dental D.847 provides sufficient space for both the metal coping and porcelain veneer.

The result is:

• Stronger restorations
• Better aesthetics
• Improved crown contours
• Enhanced longevity

---

Why Is a Shoulder Margin Beneficial for Metal Ceramic Crowns?

Metal ceramic crowns remain one of the most widely prescribed indirect restorations worldwide.

A shoulder preparation offers several advantages for these restorations.

Improved Porcelain Support

Porcelain performs best when adequately supported.

The flat shoulder created by the D.847 provides a strong foundation for the porcelain margin.

This reduces tensile stress within the ceramic and improves long-term durability.

Reduced Porcelain Fracture Risk

One of the most common causes of PFM failure is porcelain chipping.

Providing adequate porcelain thickness at the margin helps reduce the likelihood of:

• Chipping
• Cracking
• Marginal fracture

Better Laboratory Results

Dental technicians prefer clearly defined margins.

The shoulder preparation creates a finish line that is easy to identify on:

• Traditional impressions
• Stone models
• Digital scans

This improves crown fabrication accuracy.

---

Why Is the Flat Top Important?

The flat top is the defining feature of a shoulder preparation bur.

As the bur cuts into the tooth, the flat end automatically creates a horizontal preparation floor.

This provides:

• Uniform reduction
• Consistent margin design
• Predictable shoulder width
• Accurate preparation geometry

The flat shoulder allows the restoration to seat against a stable platform.

This improves:

• Crown adaptation
• Cement space management
• Marginal integrity

---

Why Is the Square Edge Important?

The square edge of the Frank Dental D.847 creates the sharp transition necessary to form the shoulder margin.

Without this square edge, a rounded chamfer would be produced.

The square shoulder provides:

• Increased restorative material thickness
• Better support for porcelain
• Stronger crown margins
• Improved aesthetics

For many PFM and ceramic crowns, this geometry is highly advantageous.

---

Why Not Use a Chamfer Bur Instead?

Chamfer burs certainly have their place.

They are commonly used for:

• Full gold crowns
• Cast metal restorations
• Monolithic zirconia crowns

However, when significant porcelain thickness is required, a shoulder preparation often offers advantages.

Compared to a chamfer, a shoulder margin provides:

• Greater ceramic support
• Improved emergence profile
• Increased material bulk
• Better porcelain aesthetics

This is why many dentists continue to select shoulder burs when preparing anterior PFM and ceramic restorations.

---

Why Gold Crowns Typically Use Chamfer Preparations

Gold is very different from porcelain.

Gold possesses:

• Exceptional strength
• Excellent ductility
• Superior marginal adaptation

Unlike porcelain, gold can be manufactured extremely thin while maintaining structural integrity.

Consequently, full gold crowns usually require:

• Less tooth reduction
• Conservative preparations
• Chamfer margins

Using a shoulder preparation for a gold crown often removes more tooth structure than necessary.

For this reason, dentists preparing full gold crowns generally choose a tapered chamfer bur rather than a shoulder bur.

---

Advantages of the Frank Dental D.847 Range

The Frank Dental D.847 range has been developed specifically for precision crown preparation procedures.

Premium Natural Diamond Technology

Frank Dental uses high-quality natural diamond particles that provide:

• Faster cutting
• Reduced pressure
• Improved control
• Consistent performance

Excellent Visibility

The tapered design improves visibility during:

• Margin placement
• Interproximal reduction
• Subgingival preparations

Smooth Cutting Performance

The balanced bur design minimises vibration, improving clinician comfort and patient experience.

Accurate Finish Lines

The D.847 range consistently produces clean, easily identifiable shoulder margins.

---

Benefits for Digital Dentistry

The growth of intraoral scanning and CAD/CAM dentistry has increased the importance of clear finish lines.

The shoulder preparation created by the Frank Dental D.847 is highly visible to scanners.

This improves:

• Digital impression accuracy
• Margin detection
• CAD design
• Crown fit
• Milling precision

For dentists using Trios, Medit, iTero, PrimeScan and CEREC systems, a clearly defined shoulder often simplifies digital workflows.

---

Common Clinical Applications for the Frank Dental D.847 Range

The Frank Dental D.847 tapered shoulder burs are ideal for:

• PFM crown preparations
• Metal ceramic crown preparations
• Anterior ceramic crowns
• Full coverage crown restorations
• Bridge retainers
• Cosmetic crown preparations
• Lithium disilicate restorations
• Crown and bridge dentistry
• Prosthodontic procedures

---

Conclusion

The Frank Dental D.847 Tapered Shoulder Diamond Bur range remains one of the most versatile and predictable instruments for crown preparation. Its flat top and square-edge design allow clinicians to create a precise 90-degree shoulder margin that provides optimal support for porcelain fused to metal crowns and other restorations requiring adequate material thickness.

By producing a clearly defined finish line, excellent porcelain support and predictable preparation geometry, the D.847 helps dentists achieve stronger restorations, improved aesthetics and longer-lasting clinical outcomes.

For clinicians searching for a premium German-made shoulder preparation bur capable of delivering precise crown margins for PFM crowns, metal ceramic restorations and advanced prosthodontic procedures, the Frank Dental D.847 range represents an outstanding choice for modern restorative dentistry.
